Climatic controller with 6 different programs to manage 1 mixed heating circuit (circulating pump contact and contacts to open and close motorized mixing valve), 1 unmixed circuit, 1 heat source with buffer logic.

• 6 inputs for PT 1000 sensors: Outside sensor, mixed circuit flow temperature, unmixed circuit flow temperature, boiler temperature (optional), room temperature (optional), remote control (optional).
• 4 output relays 230V: Mixed circuit circulating pump, open mixing valve, close mixing valve, unmixed circuit circulating pump
• 1 output with zero-potential for boiler call
• 1 outside temperature sensor
• 1 pipe sensor
• 1 dip sensor

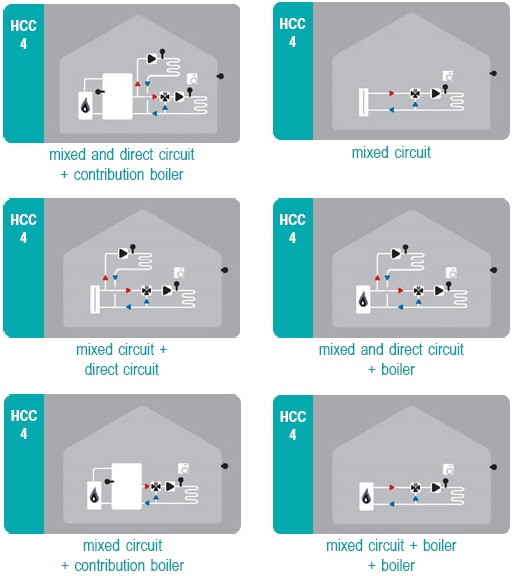

Possible Controller Heating Configurations
