Zone Distribution Header/Manifold

Starting at: Price Unavailable

Efficient heating systems are hugely effected by how heating is distributed throughout the building, Evergreen Energy now offer the best in heating distribution systems from BRV (market leader in Italian heating distribution systems).

The new BRV pump units are now supplied in a number of different configurations including systems that are equipped with modern climatic controllers to allow an optimal balance between comfort, safety and energy saving. The functionality and efficiency too, have been taken into account with regards to the installation stage. All products that are equipped with integrated controllers (Heating or Solar) are prewired: temperature sensors, power supply and control cables, thermostats and remote controls. Real Plug and Play

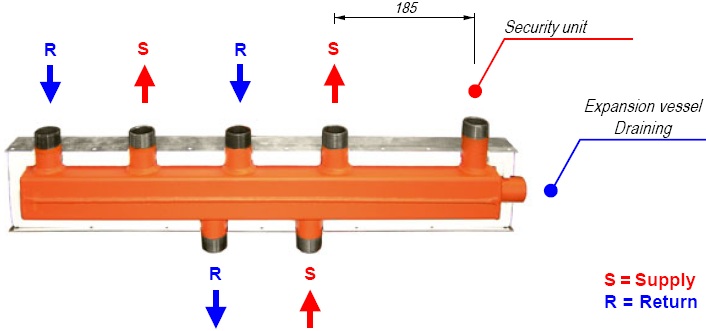

Zone Distribution Header

Distribution headers for heating systems are made from electro-welded steel and pipe and are suitable for power up to 70kWs. EPS 25mm thermal insulation according to DIN 4102-82 with a galvanised steel cover 0.8mm thick. Tested to 12 bar. Available in many different zone sizes.

Hydraulic Switcher Unit

Hydraulic switcher unit with insulation, to beconnected below the distribution manifold. This device allows the primary and secondary circuits to be disconnected hydraulically, thereby giving allowing greater volumetric flow in the manifold in comparison to the boiler flow.

This isparticularly suitable for use with condensing boilers. In fact if the boiler pump is set correctly this unit can ensure a low water return temperature (always below 57C this is the condensing temperature of the steam in methane gas) so increasing the efficiency of the whole installation

Security Unit

Security unit with 20mm EPS insulation, comes with 1 female connection on bottom, Includes:

  • Forged brass body
  • Manometer 63mm
  • Auto air vent, 6 bar
  • 3 Bar safety valve

  • 10 Units in Stock
  • Manufactured by: BRV

Please Choose:

Zone Manifold










Switcher Unit





Wall Mount






Security Unit
