Build a Zone Distribution System

Starting at: Price Unavailable

Here you can choose all the components of a BRV heat distribution system on one web page, just tick the items you need and then click on ADD TO CART

Efficient heating systems are hugely effected by how heating is distributed throughout the building, Evergreen Energy now offer the best in heating distribution systems from BRV (market leader in Italian heating distribution systems).

The new BRV pump units are now supplied in a number of different configurations including systems that are equipped with modern climatic controllers to allow an optimal balance between comfort, safety and energy saving. The functionality and efficiency too, have been taken into account with regards to the installation stage. All products that are equipped with integrated controllers (Heating or Solar) are prewired: temperature sensors, power supply and control cables, thermostats and remote controls. Real Plug and Play

Zone Distribution Header

Distribution headers for heating systems are made from electro-welded steel and pipe and are suitable for power up to 70kWs. EPS 25mm thermal insulation according to DIN 4102-82 with a galvanised steel cover 0.8mm thick. Tested to 12 bar. Available in many different zone sizes.

Hydraulic Switcher Unit

Hydraulic switcher unit with insulation, to beconnected below the distribution manifold. This device allows the primary and secondary circuits to be disconnected hydraulically, thereby giving allowing greater volumetric flow in the manifold in comparison to the boiler flow.

This isparticularly suitable for use with condensing boilers. In fact if the boiler pump is set correctly this unit can ensure a low water return temperature (always below 57C this is the condensing temperature of the steam in methane gas) so increasing the efficiency of the whole installation

Security Unit

Security unit with 20mm EPS insulation, comes with 1 female connection on bottom, Includes:

  • Forged brass body
  • Manometer 63mm
  • Auto air vent, 6 bar
  • 3 Bar safety valve

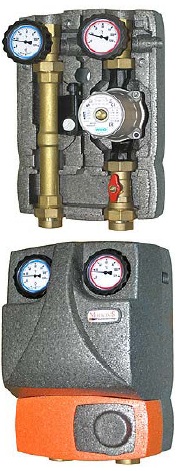

M2 insulated heating pump group

Fits directly onto the heating manifold and circulates unmixed heating fluid (for example to heat a hot water cylinder), includes:

Flow Side

  • Swivel 1 connection
  • Flanged ball valve DN20 with T handle
  • Flanged ball valve DN20, provided with thermometer holder handle (red-ring thermometer, 0C to 120C).

Return Side

  • Flanged ball valve DN20 with non return valve 20 mbar (which can be over-ridden by rotating the handle by 45) provided with thermometer holder handle (blue-ring thermometer, 0C to 120C).
  • Swivel 1 connection

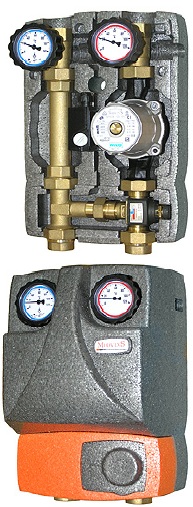

M2 FIX3 (F4) insulated heating pump group

Fits directly onto the heating manifold and circulates mixed heating fluid using a thermostatically controlled mixing valve, includes:

Flow Side

  • Swivel 1 connection
  • Thermostatic mixing valve with a setting range from 35C to 60C
  • Flanged ball valve DN20, provided with thermometer holder handle (red-ring thermometer, 0C to 120C).

Return Side

  • Flanged ball valve DN20 with non return valve 20 mbar (which can be over-ridden by rotating the handle by 45) provided with thermometer holder handle (blue-ring thermometer, 0C to 120C).
  • T connection for mixing valve
  • Swivel 1 connection

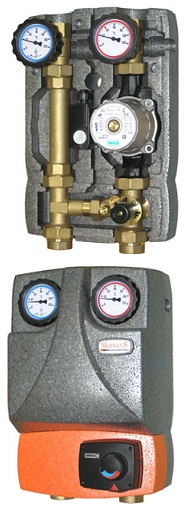

M2 MIX3 insulated heating pump group

Fits directly onto the heating manifold and circulates mixed heating fluid using an electronic controlled mixing valve that connects back to boiler heating system or climatic controller (suitable for use with weather compensating systems), includes:

Flow Side

  • Swivel 1 connection
  • 3 way mixing valve with electronic actuator
  • Flanged ball valve DN20, provided with thermometer holder handle (red-ring thermometer, 0C to 120C).

Return Side

  • Flanged ball valve DN20 with non return valve 20 mbar (which can be over-ridden by rotating the handle by 45) provided with thermometer holder handle (blue-ring thermometer, 0C to 120C).
  • T connection for mixing valve
  • Swivel 1 connection



Climatic Controller

Climatic controller with 6 different programs to manage 1 mixed heating circuit (circulating pump contact and contacts to open and close motorized mixing valve), 1 unmixed circuit, 1 heat source with buffer logic.

  • 6inputs for PT 1000 sensors: Outside sensor, mixed circuit flow temperature, unmixed circuit flow temperature, boiler temperature (optional), room temperature (optional), remote control (optional).
  • 4output relays 230V: Mixed circuit circulating pump, open mixing valve, close mixing valve, unmixed circuit circulating pump
  • 1output with zero-potential for boiler call
  • 1outside temperature sensor
  • 1pipe sensor
  • 1dip sensor




  • 7 Units in Stock
  • Manufactured by: BRV

Please Choose:

Zone Manifold










Switcher Unit





Wall Mount






Security Unit





M2 Direct Flow







M2 Fixed-Mix Flow







M2 Auto-mix Flow







Climatic Controller
