ENERGY MEETS DESIGN – WF24 Integrated Panels
The
WF24 panels are a sturdy, wooden framed panel designed for mounting
vertically on sloped roofs with either tile or slate finish. All
sealing brackets are easily assembled and clip into position to allow
for a fast and professional installation, the black finish on these
panels make them integrate easily with the standard black roof used in
the British Isles.

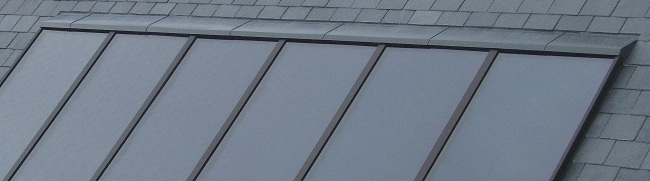

With
the WF24 you will find a solar panel that has been designed for
integrating seamlessly with Irish slate roofs. any installer that is
familiar with the "Universal" flashing kit will know how un-universal
it is when it comes to a tegral slate roof. Evergreen Energy have
designed a flashing kit that is specific to Irish needs and will be as
simple as integrating a Velux window.
Solar Expertise Meets Industry Know-How

Wooden Frame Panel Features
- Installation in no time
- Laser welded, full-surface absorbers made from copper
- Highly-selective vacuum coating
- Great appearance as they perfectly fit the available roof space
- Seamless transition from collector to collector
- Optimum micro-climate inside the case by using timber as an ecological collector material
WF24 Technical Details
Gross area
|
2.40 m2
|
Aperture surface area
|
2.22 m2
|
Dimensions
|
2064 x 1154 x 98mm
|
|
|
Heat transfer fluid content
|
|
Output - Based on annual irradiance at Dublin Airport)
|
597 kWh/m2/annum (based on aperture area)
547 kWh/m2/annum (based on gross area)
1313 kWh/annum per panel
|
Optical efficiency
|
77.00%
|
Lineal loss factor a1
|
|
Quadratic loss factor a2
|
0.0299
|
Max operation pressure
|
6 bar
|
Design
|
Modular flat collector for simple roof mounted installation at angles between 20° and 70°
|
Housing
|
Weather
resistant, wooden frame construction with an aluminium rear panel that
guarantees long service life and great reliability.
|
Cover
|
Structured, low-iron solar float glass, 3.8 mm thick, with maximum light transmission of 91%.
|
Insulation
|
Emission free mineral wool, 50mm thick
|
Absorber
|
Copper/Aluminium, laser welded, Bluetec Eta Plus/ Tinoc Classic or Interpane / Sunselet.
Absorption: 0.95 Emission: 0.05
|
Collector sealing
|
Wooden profile system with double temperature, UV resistant silicone sealant
|
Stagnation temperature
|
202 °C
|
Heat transfer fluid
|
Propylene glycol 40%
|
Nominal flow rate/collector
|
500 kg/hr
|
Kit Includes the Following
- WF24 panels (2.4 m2 gross per panel)
- Flashing and fixings as required
- S1 Solar 10 pump unit with Integarted solar controller
- Expansion vessel
- Exp vessel wall bracket with check valve
- Food grade glycol concentrate





Please Choose:
