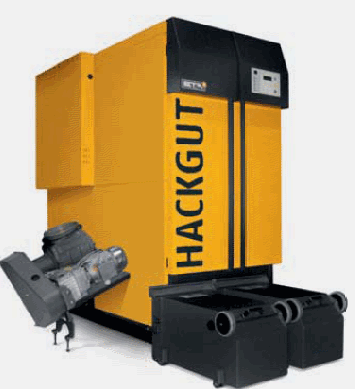

Wood Chip Boiler - ETA HACK 200

A new Standard  in wood  fuel combustion , capable of not only burning forest residues, but clean industrial wood chips from  wood processing.  A feed screw with a cross-sectional trough of 14cm and a rotary sealed air valve effortlessly conveys  wood chips, up to 5cm (G50) as well as individual pieces with a cross section of 5cm x 12cm.

Power is monitored for all devices, should a jam   occur, the auger screw briefly runs backwards to relieve the blockage.

Tried and tested induced draught technology with the secure, air-tight one chamber rotary valve recently developed by ETA offer the highest possible level of protection against “burn back”.  The valve is equipped with interchangeable blades. Excessively long wood pieces are simply chopped.  Automatic cleaning of the heat exchangers by the turbulators guarantees a consistently high level of efficiency.

All of the ash– fly ash from the heat exchangers as well as from the combustion chamber—are removed by conveyor screws and transported to the removable and easy emptied ash bins

Key Features of the ETA HACK 200

• Variable speed induced draught fan for operation independent of chimney draught.
• Automatic ignition
• Automatic ash removal
• Lambda sensors
• Proven floor agitator system
• Short assembly time due to modular construction
